UV Curing Systems Banner

Special Integrated Design is able to offer custom designed mercury arc UV curing systems. We can manufacture units not only for new applications but also to replace or upgrade old and inefficient installations.

Elements of a UV Curing System



  • The control system
  • We have designed a control system for UV lamps, which provides a stepless output to the lamp. In addition it provides interfacing signals for status and error conditions that can be connected to higher level control equipment, such as a PLC. This system is used on our own screen printer. Click HERE to learn more about our printer.

  • The light source
  • Based on the application we can offer flood or focused reflector designs and a selection of lamps with varying wavelengths and power outputs to ensure your product receives the correct dose of UV radiation.

  • The housing
  • As for the control system we are able to custom design and manufacture UV housings. These feature shielded entry/exit points to eliminate light leakage and if appropriate can be fitted with a shutter system to prevent sensitive substrates from overexposure.

UVpanel

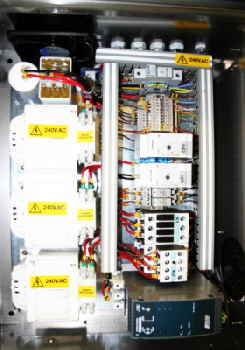

UV Control System for a Screen Printer
